Assignment #4

Due: Fri, March 2 (end of day)

Objective

To gain practice in analysis tasks -- identifying participating objects, associations, attributes, and creating a class diagram to represent them.

Task

I've presented a system description, a use case diagram, and some use case descriptions for a proposed system. Your task is to indentify objects, associations, and important attributes and behaviors, and create an analysis object model.

System Description

The proposed system is an online Battleship game, to be played on a web gaming site (e.g. like Pogo.com). This is a 2-player game, so a player starting a game will be placed into a room with another player as an opponent. Game play will proceed over the network, according to the usual Battleship rules.

Each player's window will show two 10x10 grids -- one with the player's own ships, and one that records their guesses (shots at the opponent's ships).

If you are not familiar with standard Battleship rules, see here

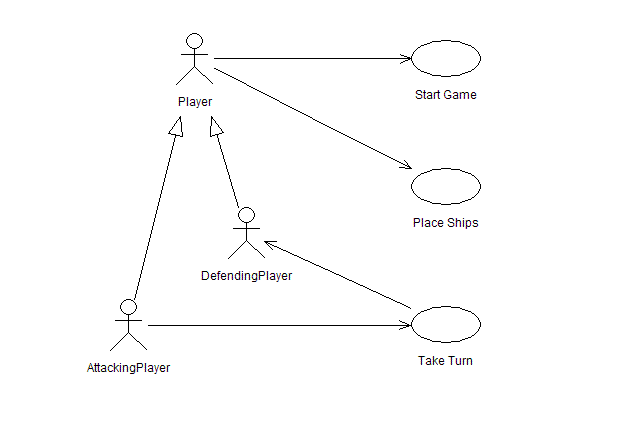

Use Case Diagram

Use Case Descriptions

Use Case	`Start Game`
Actors	`Player`
Entry Conditions	The player is logged into the gaming site The player has already clicked the Battleship link from the list of available games and is now on the start page for Battleship
Main Flow	Player clicks the main "Start Game" button on the page The system checks to see if any rooms have been created with only one player so far. If so, this player is added to it as the second player If there were no rooms waiting for a second player, a new room is created instead, and this player is added to it A game window loads, showing the two game boards, one for the player's own ships and one for tracking guesses at the opponent's board If only one player is in the room, pop-up a message window reading, "Waiting for second player to join" Game will be ready to begin once two players are in the room
Variations	Instead of the "Start Game" button, the player can begin by clicking a "Private Game" button Player is prompted to enter a name for the room, which will act as a password Another player can join this room by clicking the "Private Game" button and entering the same password Rest of the flow is the same as 4-6 above
Exit conditions	The player is now in a Battleship game room, ready to begin a game

Use Case	`Place Ships`
Actors	`Player`
Entry Conditions	The player has joined a game room
Main Flow	Player is prompted by the system to place ships by dragging ship icons over the board and dropping them into position. The prompt also indicates that a right-click will rotate the ship's alignment from horizontal to vertical (or vice versa) The player clicks a ship with the left mouse button, and drags it to their board The player drops it in a location, by letting go of the mouse button If the player right-clicks, the alignment changes (from horizontal to vertical at first, or from vertical to horizontal when appropriate) Player can perform steps 2-4 with any ship throughout ship placement Player does this process for each of the 5 ships. The ships (and their lengths) are: (Carrier-5, Battleship-4, Cruiser-3, Submarine-3, Destroyer-2) Once all ships are in the desired positions on the board, the player clicks the "Finished" button
Variations	If a ship is dropped at an invalid position (partly off the board, or overlapping another ship), the ship icon immediately snaps back to its previous position (before the current attempt to drag and drop it) If a player's opponent closes the room before the process is complete, they can still finish placing their own ships, after which a message pops up: "Waiting for second player to join"
Exit conditions	All 5 of the player's ships are placed in valid locations on the board

Use Case	`Take Turn`
Actors	Initiated by `AttackingPlayer`, Communicates also with `DefendingPlayer`
Entry Conditions	All ships have been placed on the board for both players It is the AttackingPlayer's turn There are remaining ships on the board that haven't been sunk
Main Flow	A player makes their move by clicking on the board that represents the guesses at the opponent's ships. Attacking player clicks on the square of the desired guess The system reports whether the guess is a "Hit" or a "Miss" The gameboard display is adjusted appropriately, with a fire icon in the selected square for a hit, and a water icon for a miss The DefendingPlayer's home gameboard is also updated, with the appropriate icon. If it's a hit, a fire graphic overlaps their ship (which appears on their own board)
Variations	If the move was a hit that sunk a ship, both players are notified that a ship has been sunk. The identity of the sunk ship is not given to the AttackingPlayer -- only the information that a ship was sunk. (The DefendingPlayer knows which ship, because it appears on their own board) If the move was a hit that sunk the last ship of the opponent, a message is displayed to both players indicating that the AttackingPlayer won the game. In this case, both players are given the option of clicking a button to start a new game.
Exit conditions	The game board has been updated with the results of the move

Task Details

Identify participating objects, and use these to create your analysis object model.
- Remember, you are analyzing the application domain, not designing the solution yet -- so your model should not be implementation specific.
Indicate whether each object is an entity, boundary, or control object.
- You should have at least two examples of each type of object included in your model. (You'll probably have more)
Create a UML class diagram to represent the object types that you have identified.
Identify and include any appropriate associations between classes/objects on your model
- Name associations where appropriate.
- Leave out names if the association is already clear
- Include role names where appropriate (again, leave out if already clear)
Identify and include multiplicities for each association, where appropriate
Identify any important attributes and operations for your object types, and include them on the diagram
- You don't need to include all member data and member functions that you would create in a code solution. Again, this is the problem domain!
- Include attributes and operations that are important to understanding the problem

Submitting

You will submit this one electronically, since the due date is not on a class day. Put your work into a document of one of the following formats:

Rich Text File
MS Word Document
PDF

Your file should be set up so that it will print onto standard size paper (8 1/2 x 11). It can print on multiple pages, but it should print as-is, without having to reformat the file in any way. Your document should include a header with your name and section number.

Document contents: Any written answers you wish to include (explanations of your choices, identification of entity, boundary, control objects, etc). And your class diagram, pasted in so that it fits within the printable boundaries.

Filename should be one of the following (depending on document type):

hw4.rtf
hw4.doc
hw4.pdf

E-mail this file to me (myers@cs.fsu.edu) by the due date. Your e-mail subject should be HW4-SUBMIT. Include your name and section in the e-mail body. Please only submit ONCE, unless you make a mistake and need to correct it (before the due date) -- and minimize this. Only the last submission will be graded.

Your submission e-mail needs to come either from your CS account (preferred) or your garnet/mailer account.
