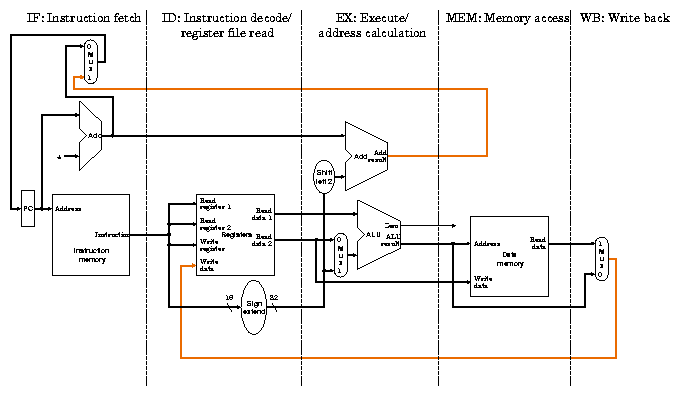

Figure 6.10: The single-cycle datapath from Chapter 5 (similar to Figure 5.17 on page 358).

Figure 6.10: The single-cycle datapath from Chapter 5 (similar to Figure 5.17 on page 358).
