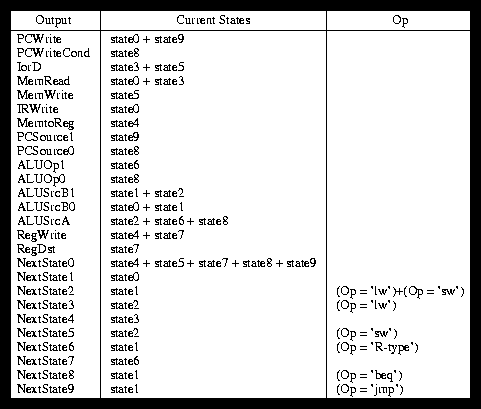

Figure C.8: The logic equations for the control unit shown in a shorthand form.

Figure C.8: The logic equations for the control unit shown in a shorthand form.

Chapter 5: The Processor: Datapath and Control - 30 of 35
