Assignment 2 (400 Points)

Note: Written problems must be typed and submitted as a Portable Document Format (PDF) file. All major word processors provide equation editing capabilities; therefore, all mathematics must also be typed. Here is a small list of equation editing software (there are many others):

• Apache OpenOffice Math
• Word for Mac 2011
• Office 2007
• Office 2010
• Office 2013
• MathType
• LaTeX

• Study the following Open Source Computer Vision (OpenCV) Machine Learning Library (MLL) code:

  This code is an example of how to read a Comma-Separated Values (CSV) file into an OpenCV data structure, eliminate irrelevant columns, create a training and a testing data set, and then perform k-Nearest Neighbors classification using those data sets.

  As you go through this file, ask yourself the following questions:
  • What is happening?
  • What do we want to happen?
  • Why is it in that order?
  • How does this relate to Evaluating and Choosing the Best Hypothesis (Section 18.4 on Page 708)?

  Download the ZIP file containing the files below for testing: assignment_02_mldata.zip

  Note: This is not an example of good code. This is a flat code file with no comments that exists solely as a way to submerge you into to the MLL documentation at OpenCV.
  Note: The g++ version 4.7.2 and the OpenCV version 2.4.4 libraries only exist on linprog4.cs.fsu.edu. You will need to make this on linprog4.cs.fsu.edu.
  • main.cpp: The file using MLData and K-Nearest Neighbors.
  • wdbc.data.txt: The data set.
  • wdbc.names.txt: An explanation of what the data set means.
  • makefile: The makefile for linprog4.cs.fsu.edu.

  Reference: Machine Learning Library (MLL) from Open Source Computer Vision (OpenCV).
  Reference: Breast Cancer Wisconsin (Diagnostic) Data Set from the University of California, Irvine (UCI) Machine Learning Repository.


• For convenience only, Assignment 02 is provided in the following formats:

  • Word (for editing): assignment_02.docx
  • PDF (for printing): assignment_02.pdf ... so you can work problems out by hand before typing the text and math up in a word processor.

  Note: These files are provided as is and may be incorrect. The authoritative version of Assignment 02 is this web page. If there is a difference between this web page and the files provided above, this web page is considered correct and should be preferred.


• Complete the following written problems:


  1. (10 Points) Given that a loaded coin has the following probability for coming up heads: . What is the probability that the loaded coin will come up tails? In other words, what is ?


  2. (20 Points) Given loaded coin tosses are independent events and that a different loaded coin has the following probability for coming up heads twice in a row: . What is the probability that the loaded coin will come up tails twice in a row? In other words, what is ?


  3. (40 Points) Given a fair coin with and a loaded coin with , if we pick a coin at random (i.e. ) and flip it, what is the probability that it is the loaded coin given that we observe heads? In other words, what is ?

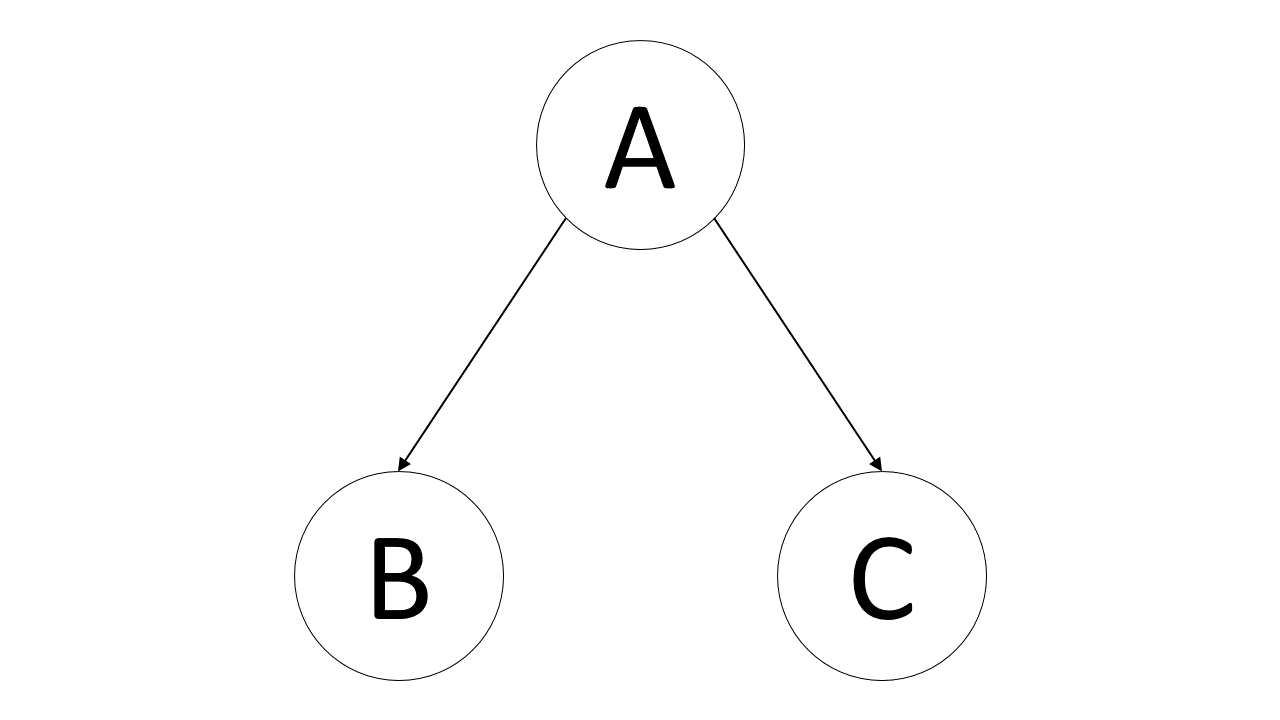

  4. (40 Points) Given the following Bayes Network:



     With the following probabilities:




     • What is ?
     • What is ?


  5. (130 Points) Using the data below, construct a Naïve Bayesian Network that does NOT use Laplacian Smoothing to predict that an Iris is an Iris versicolor based on if its sepals are long or wide.

     Note: Sepals are the green petal-like objects surrounding a flower.



     Long Sepals	Wide Sepals	Iris versicolor
     false	true	false
     false	false	false
     false	true	false
     false	true	false
     false	true	false
     false	true	false
     false	true	false
     false	true	false
     false	false	false
     false	true	false
     true	true	true
     true	true	true
     true	true	true
     true	false	true
     true	false	true
     true	false	true
     true	true	true
     false	false	true
     true	false	true
     false	false	true


     Do the following:
     • Draw the graph of the Naïve Bayesian Network.
     • Given the data above, answer the following questions:
       1. What is the probability that an Iris is an Iris versicolor? In other words, what is ?
       2. Given an Iris versicolor, what is the probability that its sepals are long? In other words, what is ?
       3. Given an Iris versicolor, what is the probability that its sepals are wide? In other words, what is ?
       4. Given an Iris versicolor, what is the probability that its sepals are both long and wide? In other words, what is ?
       5. Given an Iris that is not an Iris versicolor, what is the probability that its sepals are both long and wide? In other words, what is ?
       6. Given an Iris with both long and wide sepals, what is the probability that it's an Iris versicolor? In other words, what is ?


  6. (60 Points) Using the data from the previous problem, construct a Naïve Bayesian Network that DOES use Laplacian Smoothing to predict that an Iris is an Iris versicolor based on if its sepals are long or wide.

     For Laplacian Smoothing, use .

     Given the data above, answer the following questions:
     1. What is the probability that an Iris is an Iris versicolor? In other words, what is ?
     2. Given an Iris versicolor, what is the probability that its sepals are long? In other words, what is ?
     3. Given an Iris versicolor, what is the probability that its sepals are wide? In other words, what is ?
     4. Given an Iris versicolor, what is the probability that its sepals are both long and wide? In other words, what is ?
     5. Given an Iris that is not an Iris versicolor, what is the probability that its sepals are both long and wide? In other words, what is ?
     6. Given an Iris with both long and wide sepals, what is the probability that it's an Iris versicolor? In other words, what is ?


• Complete the following programming problem on linprog4.cs.fsu.edu:

  Download the ZIP file containing the directory structure and files for this programming problem: assignment_02.zip


  1. (100 Points) Use the method of gradient descent to find the minimum of a function.

     Given the function:

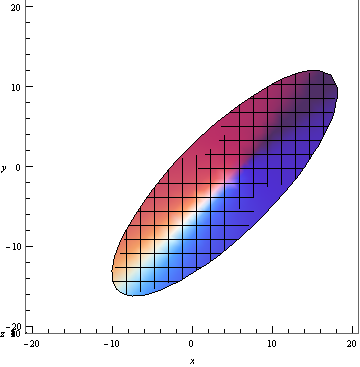

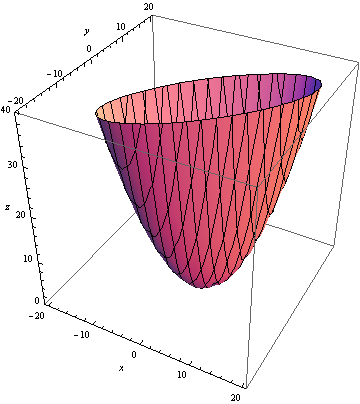

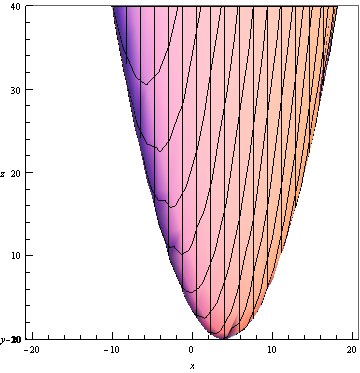

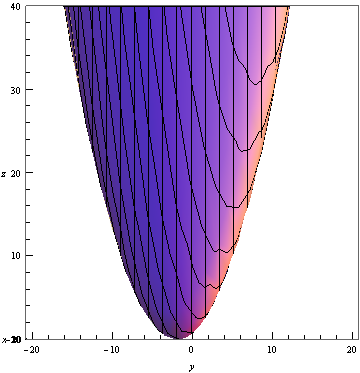

     With the following plots:



     Use the method of gradient descent to find the value that produces the minimum when we start gradient descent from and use the learning rate .

     The gradient descent update formula is: ; therefore, it is for this problem.

     Stop the gradient descent when either:
     • The difference in consecutive values is less than . In other words, when .
     • The number of full gradient descent iterations exceeds 1024. In other words, don't do more than 1024 updates of gradient descent.


     Use the following files:
     • print.hpp: The file containing operator << to print arrays and std::vector.
     • main.cpp: The file for editing.
     • makefile: The makefile for linprog4.cs.fsu.edu.

     Do not make changes to the makefile. Only make changes to main.cpp.

     Use std::cout to output information exactly in the following format:
     1: ( 0, 0 )
2: ( 0.622222, -0.577778 )
3: ( 1.12395, -1.03605 )
.
.
.

     Note: The ellipses above should not be included in your output. The ellipses represent the rest of your properly formatted output for this gradient descent problem.


• After completing Assignment 02, create an assignment_02_lastname.pdf file for your written assignment and an assignment_02_lastname.zip file for your programming assignment (where lastname is your last name). Ensure that your assignment_02_lastname.zip retains the directory structure of the original zip file. In other words, ensure your zip file has the following directory structure:
  • /
    • gradient_descent/
      • print.hpp
      • main.cpp
      • makefile

  Upload both your assignment_02_lastname.pdf file for your written assignment and your assignment_02_lastname.zip file for your programming assignment to the Assignment 02 location on the BlackBoard site: https://campus.fsu.edu.


• Note: Questions derived from the following sources:
  • Artificial Intelligence: A Modern Approach, Third Edition by Stuart Russell and Peter Norvig.
  • Udacity's Introduction to Artificial Intelligence course by Peter Norvig and Sebastian Thrun.
  • Coursera's Machine Learning course by Andrew Ng.
  • Coursera's Neural Networks for Machine Learning course by Geoffrey Hinton.
  • Coursera's Machine Learning course by Pedro Domingos.
  • edX's CS188.1x Artificial Intelligence course from BerkeleyX by Dan Klein.
  • Coursera's Introduction to Logic course by Michael Genesereth.
  • NPTEL's Artificial Intelligence course by Pallab Dasgupta.
  • NPTEL's Artificial Intelligence course by Anupam Basu and Sudeshna Sarkar.
