"real-time computing"

designing and implementing systems with control over execution timing -- i.e., over when certain steps of a computation are executed, relative to events in the real world
ideal: should be able to design and code a system with as much confidence that timing will be correct as that output values will be correct
requires cooperation of all levels of the computer/system
- application program
- programming language implementation
- operating system
- hardware
theory:
- models of computation -- require simplifications
- scheduling algorithms, concurrency control/resource allocation algorithms
- analysis of schedulability (for each algorithm)
practice:
- implementations
- performance testing
- trial applications

My ideal work product combines:

a problem or application that people care about and are likely to use
a new algorithm, idea, or question
a sound abstract model, with analysis pushed to the limit of what theory can do
an implementation study, to:
- verify feasibility
- resolve, empirically, issues that the theory cannot
- encourage use, by providing a working product
if full-scale implementation is not practical, simulations:
- resolve, empirically, issues that the theory cannot

Past work

theory: computability, computational complexity, P&NP
algorithms: pattern matching, parsing, priority queues
compilers: semantic analysis, parsing, code generation, Ada, worst-case execution time analysis, reducing context switches
OS: real-time kernels, threads, multiprocessing, standards (POSIX/UNIX)
real time: kernels, scheduling, programming languages

Examples of Specific Past Projects

exploratory development -- OS's and PL's

GNAT Ada compiler
→ concurrency
→ optimization
→ Java bytecode target
→ RT Linux target
GNARL runtime system (Ada) → optimization, portability
Ada language standard → real-time extensions, AST, locking
POSIX threads (C) - FSU pthreads library
POSIX Ada binding (Ada) → sockets, test suite
Linux (C) → real time extensions

theory - real-time schedulability analysis

concurrency and resource control
multiprocessor scheduling models
timing analysis

Examples of Student Involvements

Ada tasking optimizations (PhD, Oh)
Real-time nested transactions (PhD, Moon)
RT Linux Ada kernel (MS, Shen)
RT Linux Sporadic Server (MS, Shi)
Ada/RT Linux Priority Queue Performance Evaluation (MS, Nikhil Mhatre)
RT Linux Network Driver (MS, Liu)
Multiprocessor schedulability testing (students Fisher from UNC and Cirinei from Pisa)
Modeling device driver effects in demand-based schedulability analysis (FSU students Lewandowski and Stanovich)

Current Resarch Areas

real-time multiprocessor scheduling
- schedulability analysis (theory)
- partitioned and global models
- concurrency control
- implementation and performance studies
- applications (vision, tracking?)
- real-time systems course, and advanced course
real-time device driver architecture
- 4-year NSF grant: with Kartik Gopalan & Andy Wang (co-PIs), Mark Lewandowski & Mark Stanovich (RAs)
- objective: structure and schedule device drivers to make real-time scheduling more predictable for applications
- device drivers course
real-time image analysis/tracking (with CAVIS group)
- have equipment, via ARO DURIP grant
- looking for tie-in with device driver research

What is Real Time?

Is achieving correct timing a primary consideration in the design?
Does the computer system need to synchronize with external entities?
Can a timing error cause the entire system to fail? e.g.

if output is produced to early?
if output is procued too late?
if time between input and output is too long?

Main objective: predictable timing, to meet requirements
Secondary objective: fast execution

Examples of Real Time Systems

autopilot
nuclear reactor monitoring system
chemical plant control system
remotely piloted vehicle
robot
multi-media player
washing machine, TV, automobile
stock market analysis system
video surveillance system

X + predictable/controllable timing = real-time X

Real-Time Device Driver Architecture

solid body of theory on real-time scheduling exists
- based on workload fitting one of several abstract models
- based on scheduling according to one of several well analyzed policies/algorithms
- allows proving timing constraints will always be met, or determining frequency/probability of failure
device drivers
- device-centric
- use special OS scheduling mechanisms
- can preempt and block application thread/processes
- scheduling is hierarchical, does not fit standard models
- drivers not designed to fit workload models
real-time applications
- preempted and/or blocked by device drivers
- have little/no visibility or control over driver effects

Approach

study some real drivers in Linux

analyze their workload
- read driver code to see logic
- insert instrumentation code to get actual timings
- run benchmarks (tests) and gather data
how to they compete with application threads for CPU time?
how do they hold up applications waiting for I/O?
try to match workload to abstract models
- what are the "jobs" and the "tasks"?
- what is their execution pattern (periodic, sporadic, what?)
- what are their scheduling requirements?

look at how the OS schedules them
- does it fit any analyzed formal models?
- if not, can we analyze it?
- if not, can we change kernel to fit a nicer model?
try to analyze the drivers interactions with real-time threads
- check predictions against actual performance
look for ways to improve analyzability/performance
- in analysis techniques
- in driver design
- in OS support for drivers
  - extend/modify kernel "API" for drivers
  - provide application-level controls?

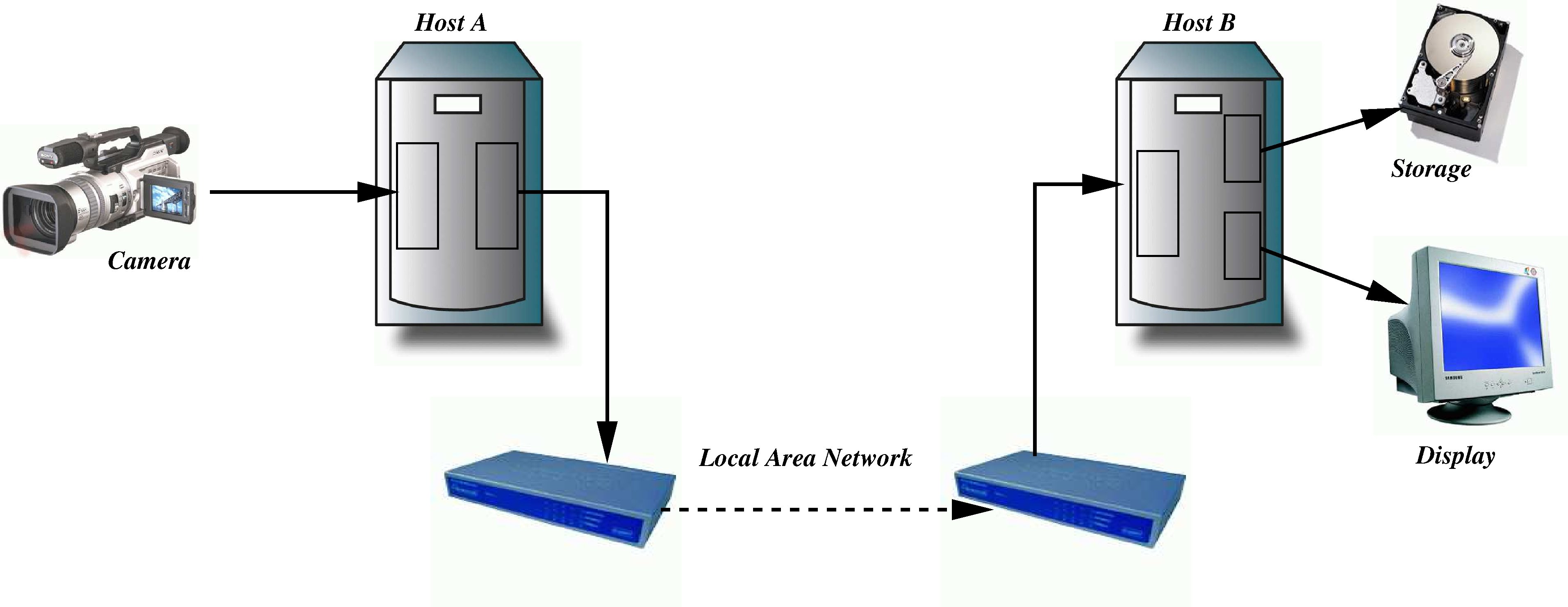

Testbed Project - Video Surveillance System

Real-Time Scheduling Terms

job = unit of schedulable work
- a procedure, and data on which it executes
- an execution time (generally not known exactly, but usually with known upper bound)
- a deadline (hard or soft)
task τ_i = sequence of jobs J_i,j — a.k.a. "thread", "process"
periodic task = job release times are separated by a constant (the task period)
sporadic task = job release times are separated by at least a constant (the task period)
aperiodic task = not a periodic or sporadic task
- some load limiting constraint needed to ensure schedulability
- e.g., load bound function (see below)
utilization of a task is average execution time needed per unit of real time = c_i/T_i
(one of several metrics)
demand of a task in a time interval is the amount of processor time used by the task in the interval
load = demand / interval_length
any upper bound on the load for a given interval length is useful for predicting schedulability

SMP Schedulability Analysis

multiprocessors, including multi-core becoming more common
schedulability theory not well developed, relative to single processor
- core result for single processor, on "critical instants", does not apply
traditional method: partioned scheduling (queue per processor)
- apply single-processor scheduling on each CPU
- optimal partitioning is NP-hard
- first-fit comes within 50% of optimal, usually much better
- worst case: breakdown at 50% of optimal processor utilization
global (single queue) scheduling
- originally deprecated, due to Dhalls' effect (see below)
- recently shown to be competitive with partitioning
- interactions with memory cache are subject to hot debate

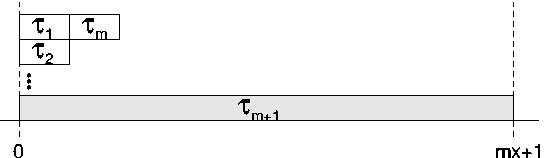

``Dhall Effect'' with EDF/DM Scheduling on MP

This is only a problem when we have some tasks with very high local utilization.

This example shows worst-case achievable multiprocessor utilization can be arbitrarily close to 1, compared to ideal value of m. Until recently, it was used as an excuse for using partitioned scheduling on multiprocessors. However, the example depends on mixing tasks with extremely low and extremely high utilization (or ratio of compute time to deadline). Intuitively, we know we can achieve higher utilization when we have only smaller tasks.

Global Schedulability Test - Basic Idea

Load-Based Schedulabity Analysis

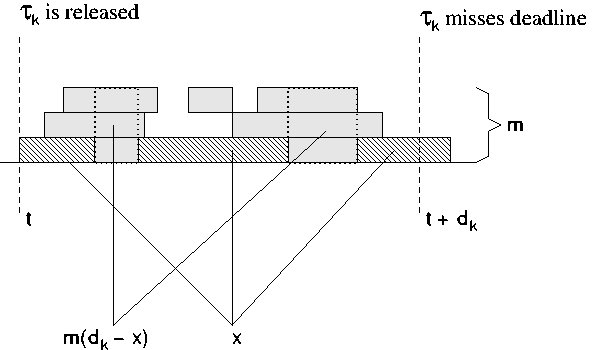

Find a lower bound μ on the load of a window leading up to a deadline that is necessary for the deadline to be missed.
Find an upper bound β on the load of such a window that can be generated by a given task set.
If β < μ the task set must be schedulable.

There are several variations as to how we define "load" that allow different refinements in analysis.

Generalized Fixed-Priority Density Test

A system of N independent sporadic tasks can be scheduled to meet all deadlines on M processors using preemptive global fixed task-priority scheduling if (but not necessarily only if), for every task τ_k there exists λ≥λ_k such that one of the following criteria is satisfied

n
∑
i=1

min(β^λ_k(i), 1 - λ) < m (1- λ)

n
∑
i=1

min(β^λ_k(i), 1 - λ) = m (1- λ) and ∀ i β^λ_k(i) ≤ (1- λ) ⇒ β^λ_k(i) = 0

where

β^λ_k(i)

def
=

0			if	i ≥ k
u_i(1 + max(0,	p_i-e_i d_k	))	if	u_i≤λ and i < k
u_i(1 + max(0,	p_i-e_i+d_i(1- λ/u_i) d_k	))	if	u_i>λ and i < k

This is one of several results, which have gradually provided better techniques for verifying schedulability of task systems on multiprocessors.

Unfortunately, they do not cover all the cases. When it comes to evaluating how well they do, we look at performance in simulations on large numbers of task sets.

Experiment with BC Test for Deadline Monontonic Scheduilng on 4 CPUs

How many of the task sets that could not be proven schedulable are not schedulable?

Hierarchy of Possibilities for a Task Set

schedulable to meet all deadlines by given method
- proven schedulable by a given test
- schedulable, but not proven
feasible (there exists a schedule that meets deadlines) but not schedulable by given method
- proven feasible (how?)
- feasible, but not proven
infeasible (there is an arrival sequence for which no schedule can meet all deadlines)
- infeasible, but not proven
- proven infeasible
